Pharma & Chemical

High COD & Solvent Recovery
Recover Value. Ensure Compliance.

Pharmaceutical and specialty chemical effluents often contain high organic loads (COD) and valuable, recoverable solvents. Rototech designs integrated stripper-evaporator trains that recover solvents for reuse while breaking down the complex COD load for ZLD.

Request System Audit
Solvent ReuseRecover IPA, Methanol, etc.
COD ReductionPre-treatment for ETP
Safer OperationReduced explosion hazards

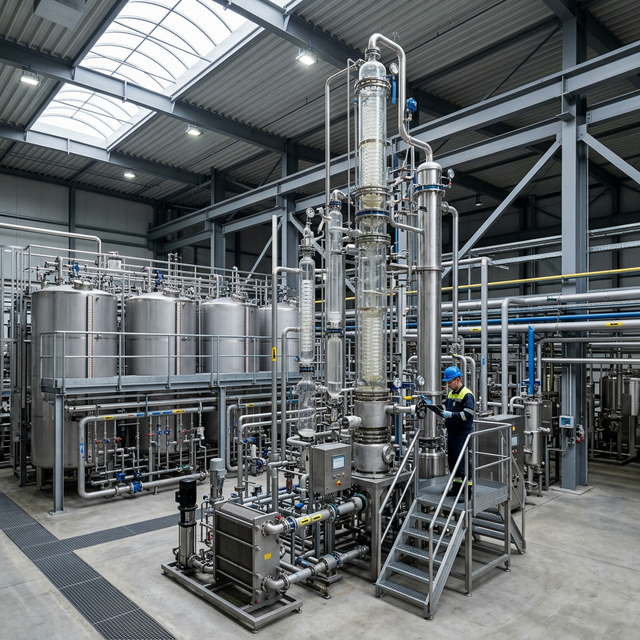

Rototech High COD and Solvent Recovery Distillation System
Manufactured in Ahmedabad, Gujarat, India
ATEX / Flameproof High Purity Custom PLC
The Challenge

Managing Complex Effluents

API (Active Pharmaceutical Ingredient) manufacturing generates effluents with enormous Chemical Oxygen Demand (COD) — sometimes exceeding 1,00,000 ppm — primarily driven by residual solvents.

Feeding this directly into an evaporator causes severe foaming, poor condensate quality (making it unfit for boiler reuse), and safety hazards due to volatile organic compounds (VOCs). Rototech addresses this with a two-step process.

Stripper Column Integration

Phase 1: Stripping & Recovery

The raw effluent is first passed through a thermal Stripper Column. Through fractional distillation, low-boiling solvents (Methanol, Ethanol, IPA, Acetone, Toluene) are vapourised, condensed, and recovered as a pure liquid product.

COD Drastic Reduction

Removing the solvents instantaneously drops the COD of the bottom effluent by 50% to 80%, transforming a hazardous stream into a manageable one.

Phase 2: Clean Evaporation

The stripped, solvent-free effluent is then fed to the MEE/MVR evaporator. Without the foaming organics, the evaporator runs smoothly, and the resulting condensate is crystal clear, pure water ready for cooling tower makeup.

Industries

Target Sectors

Bulk Drugs (API)

Complex mother liquors with mixed solvent profiles.

Specialty Chemicals

Herbicides, pesticides, and reactive intermediates.

Distillery

Ethanol recovery and spent wash concentration.
